EKMW Custom 2-Link Bars – 23"–34" Built to Order (Pair)

Custom EKMW 2-Link Bars — Built to Your Measurements and Sold as a Pair

Ekstensive Metal Works has been building 2-link rear suspension systems since 1994. This configurable setup is for custom applications where you need to choose the link length, block height, shock-mount style, and bag-mount position.

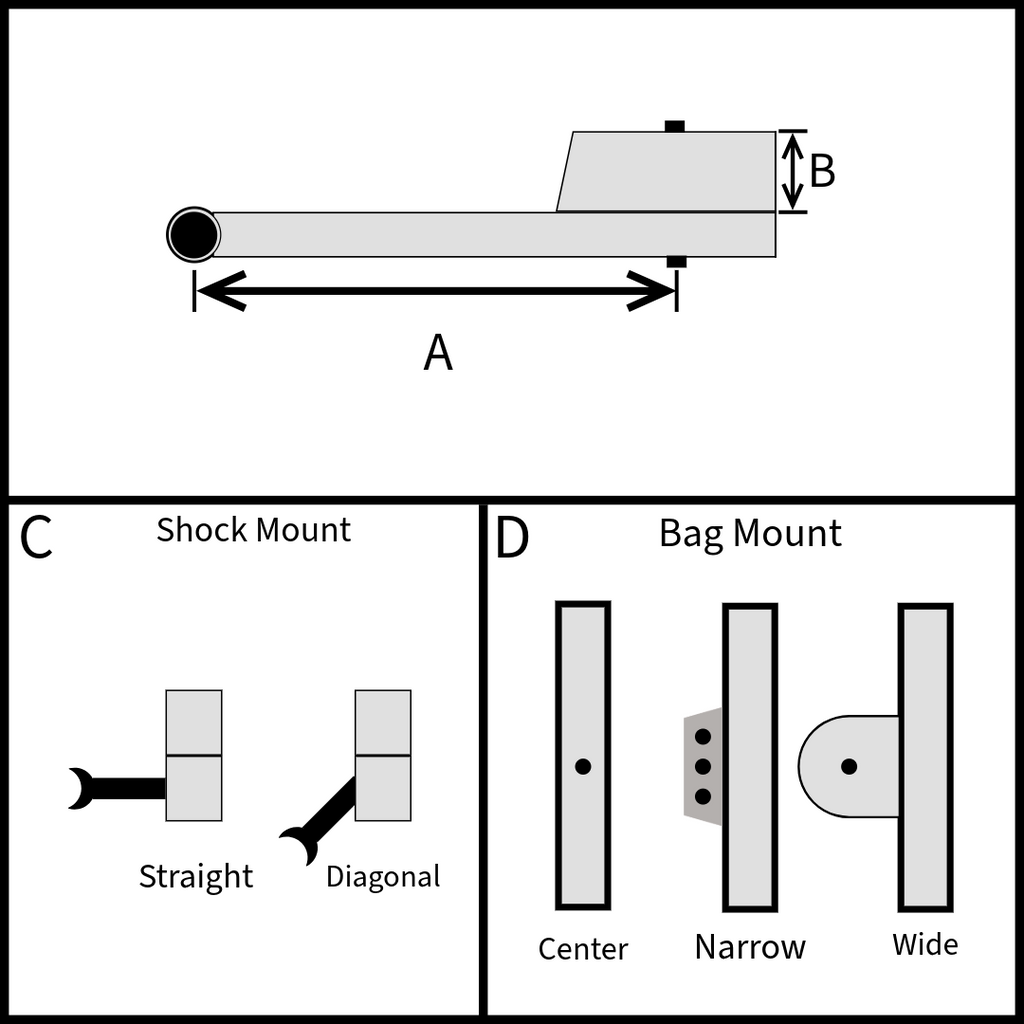

A — Link Length
Measure from the center of the leaf-spring hanger bolt hole to the center of the axle. Select the matching center-to-center length for your build.

B — Block Height
Select the block height that matches your suspension layout and desired mounting position.

C — Shock Mount

• Straight — straight shock-mount configuration
• Diagonal — angled shock-mount configuration
• None — no shock mount added

D — Bag Mount

• Center — bag-mount hole centered on the 2-link bar
• Narrow — narrow bag-mount position
• Wide — wide bag-mount position
• None — no bag mount added

Included: All custom 2-link bars include bushings and inner sleeves.

Important: This is a made-to-order part built specifically to the options you select. Verify every measurement and configuration before ordering. Custom made-to-order pieces are nonrefundable.

Professional fabrication and welding are required. Confirm axle position, driveline angles, bag clearance, shock clearance, and full suspension travel before final welding.
